Logs

The Spectra StorCycle solution automatically creates error logs and writes event information into log files for troubleshooting purposes. When one of the log files reaches 10 MB in size, the log file text is written to a timestamped file and the existing log file is cleared. Up to ten, 10 MB files of each type are stored on the server. A Log set, which gathers the current log of each type, can be generated manually.

Note:

The current log file is not cleared when a log set is created. If one log set is created and then a second log set is created before the log file reaches 10 MB in size and is cleared, the two log sets will have overlapping information.

Click the Settings icon (gear) in the toolbar and then select Logs. The Logs screen displays showing the currently saved log sets.

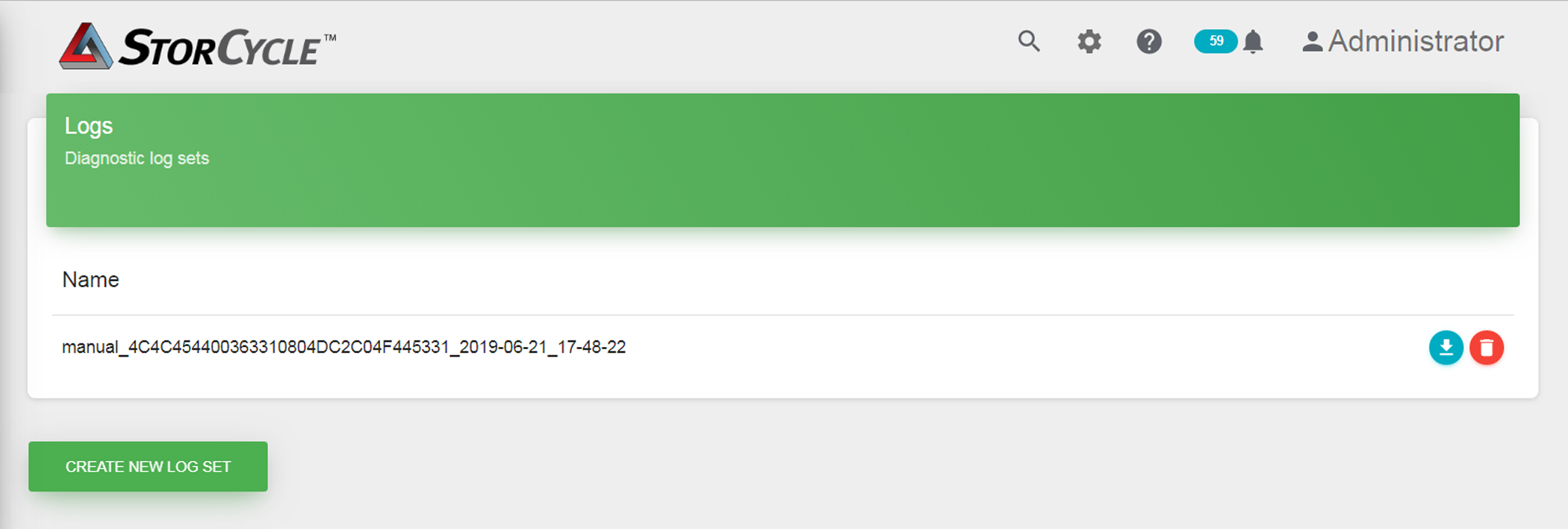

Figure 70 The Logs screen.

Create a Log Set

1.	Click Create New Log Set. The Create New Log Set dialog box displays.

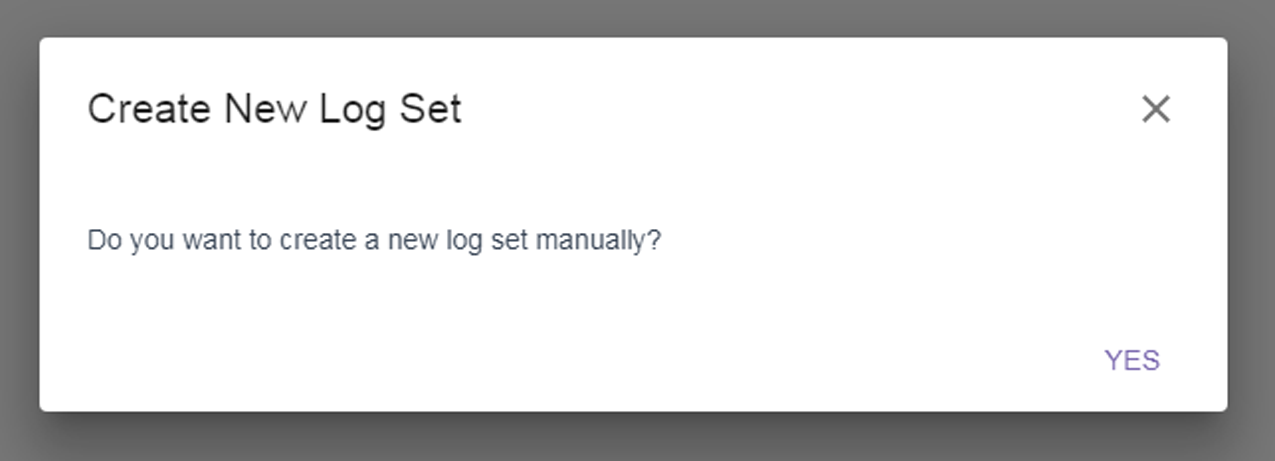

Figure 71 The Create New Log Set dialog box.

2.	Click Yes. A new log set is collected immediately.

Download a Log Set

To download a log set, click the download icon (blue circle with a downward arrow) next to the log set that you want to download. The log set begins downloading to your host computer.

Delete a Log Set

To delete a log set, click the Delete icon (red circle with a trash can) next to the log set that you want to delete. Click Delete to confirm the deletion.
