Jobs

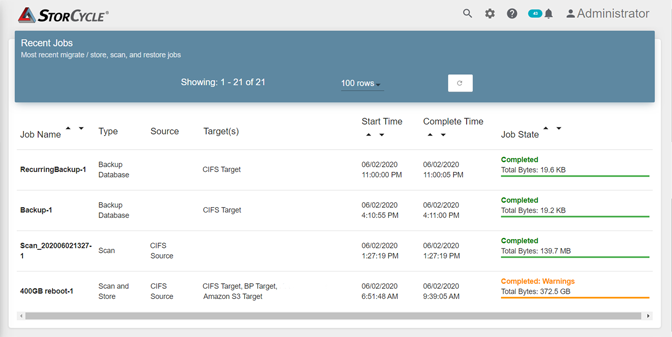

The Recent Jobs screen displays the following information:

Heading	Description
Job Name	The name of the job. The name uses the Project name defined when configuring the project and a number indicating how many times the project was previously run.
Type	The type of job. Values include Backup Database, Scan, Store, Scan and Store, and Restore.
Source	The storage location used as the source for the job. Note: This will be empty for a database backup.
Target(s)	The storage location(s) used as the target(s) for the job. Note: This will be empty for scan and restore jobs.
Start Time	The date and time the job started.
Complete Time	The date and time the job completed.
Job State	The status of the job. Values include: Active, Canceled, Canceling, Completed, Completed: Errors, Completed: Warnings, and Failed.

Job Details

Click the Job Name or the Job State to display the Job Details dialog box.

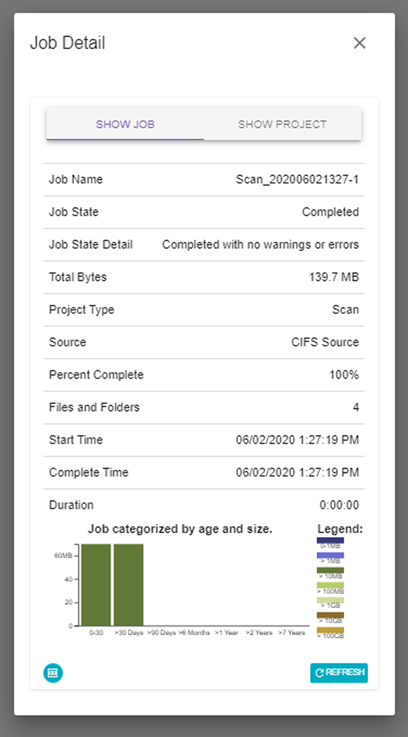

Job Details - Show Job

Figure 79 The Job Detail - Show Job dialog box for a scan job.

The information presented in the Job Detail dialog box varies depending on the job type, and can include the following:

Heading	Description
Job Name	The name of the job.
Job State	The status of the job. Values include: Active, Canceled, Canceling, Completed, Completed: Errors, Completed: Warnings, and Failed.
Job State Detail	Whether a job completed with warnings, errors, or neither; failed with warnings, errors, or neither, or was canceled with warnings, errors, or neither.
Total Bytes	The number of bytes of data that were processed and the percent complete.
Project Type	The type of project, scan, migrate / store, restore, or database backup, which ran the job.
Source	The storage location used as the source for the job.
Percent Complete	The percent of the overall job which is complete.
Target(s)	The storage location(s) used as the target(s) for the job.
Files and Folders	The number of files and folders that were processed.
Start Time	The date and time the job started.
Complete Time	The date and time the job completed.
Duration	How long the job took to complete in the format hh:mm:ss, where hh is the number of hours, mm is the number of minutes, and ss is the number of seconds.
Catalog	The name of the catalog containing the information about the migrated / stored data.
Warnings and Errors if applicable	Warnings and errors generated by the job display at the bottom of the Job Details.

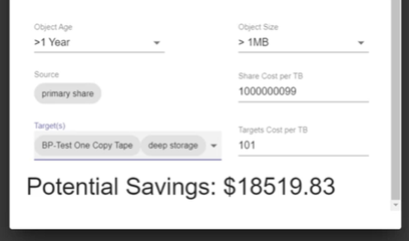

Savings Calculator

Click the Savings Calculator icon (blue circle with calculator) at the bottom of a Scan Job Detail dialog box to display the Savings Calculator.

Figure 81 The Savings Calculator.

Using the Object Age drop-down, select the age of files to include.

Notes:

•

Object Age is determined using the configured Method to determine file age. See Configure Global Settings for more information.

•

Only those objects meeting the Object Age and the Object Size requirements are included.

Using the Object Size drop-down, select size of files to include.

Note:

Only those objects meeting the Object Age and the Object Size requirements are included.

The Source and Share Cost per TB are entered automatically with the source of the job and the Cost/TB entered when creating the source storage location. The Share Cost per TB can be altered in the Savings Calculator. Making changes to the Share Cost per TB in the Savings Calculator does not change the value set for the storage location.

If desired, select one or more Target(s). The Targets Cost per TB updates to display the total of the Cost/TB entered for all selected Target(s). The Targets Cost per TB can be altered in the Savings Calculator. Making changes to the Targets Cost per TB in the Savings Calculator does not change the value(s) set for the storage location(s).

The Potential Savings value indicates how much you can save by moving the selected files from primary storage to secondary storage.
